Description
| System Hardware | I/O Interface | Network Communication |
| CPU – MT6877, 2 ARM® Cortex-A78 2.4 GHz + 6 ARM® Cortex-A55 2.0 GHz |
POGO PIN – 1*POGO PIN (USB+charging | WWAN – 2G/3G/4G/5G multimode, Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, FDD/TDD LTE, 5G FDD/TDD, GSM, TD-SCDMA, WDCDMA GSM: B2/3/5/8 TD-SCDMA: B34/B39 WCDMA: B1/2//5/8 CDMA: BC0 TDD: 34/38/39/40/41FDD: 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28 B/66 5G: N1/3/5/7/8/20/28/38/40/41/77/78/79 |
| RAM+Storage – 6GB+128GB | USB – 1*USB Type C (USB OTG+charging) 1*USB 2.0, |
|
| Camera – Front 8MP xed focus camera, rear 20MP autofocus camera |
Video – 1*mini HD | |
| Flash Light – Support | Audio – 3.5mm headphone jac | |
| Speaker – Single speaker, 1.2W/8 Ω aluminum lm, IP67 waterproof speaker |
TF Card Slot – 1*TF card holder, supporting up to 25 | |
| MIC – IP67 waterproof microphone | SIM Card Slot – 1*Micro SIM card hold | |
| Earpiece – IP67 waterproof earpiece | Aviation Plug – Extension 1*COM or 1*USB | |
| Button – Power button, Volume +/-, 1*Customize function key 1*Barcode scanner shortcut key |
||
| LED Indicator – Charging indicator | ||
| Sensor – G-sensor, Gyroscope, geomagnetism, Distance sensor, Motor, Light sensor, air pressure |
||
| Display | Extended Functions | Power |
| LCD Type – 10.1″ TFT-LCD | NFC/RFID – 13.56MHz, supporting | Power Input – 5V DC input, standard with 5V/2A power adapter Optional 5-24V DC power input, without built-in battery power supply |
| Max. Resoltuion – 1200*800 | RFID – Optional RFID/HF RFID/UHF RFID | Battery – 9800mAh, 3.8V detachable lithium battery |
| Cover Glass – Corning Gorilla third-generation glass, with a hardness of 7H and a light transmittance of 85% |
ID Card Identi cation – Optional ID card recognition module |
Battery Life – 10 hours (LCD 50% brightness, playing 1080P video) |
| Luminance – 1000 cd/m2 | Barcode Scanner – Optional 1D/2D barcode scanning | |
| Touchscreen – 5-point capacitive touch screen Optional AG+AF or AG+AF+wet hands/gloves |
||
| OS | Environment | |
| OS – Android 13 | Drop – 1.2m free fall to the wooden oor | Mechanical |
| IP Rating – Standard IP65, optional IP67 | Dimension – (WxHxD) 272*180*21mm Increase the thickness of the optional UHF RFID module by 9.5mm |
|
| Operating Temp – -10C~50C | Weight – 1.25kg | |
| Storage Temp – Storage temperature: -30~70 (excluding batteries); -20~50 (Including batteries, needs to be charged and discharged once within 2 months of long-term storage |
Color – Black | |
| Certificate | Accessory | |
| Certi cate – CE、ROHS、UN38.3、MSDS、IEC62133 | Accessory – Hand strap, 5V/2A power adapter | |
| Opt. Accessory – Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Type-C OTG cable |
||

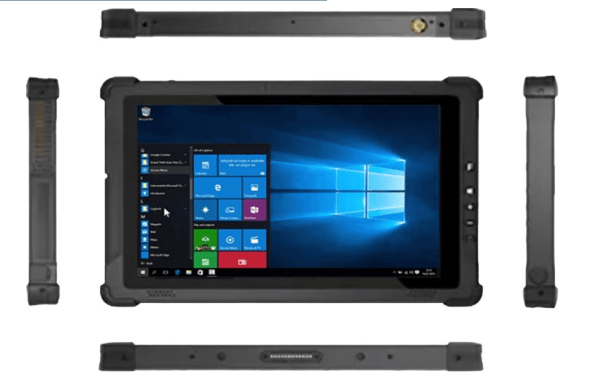

PRODUCT SIX VIEW
PRODUCT SIX VIEW
