The Kinan’s XL1908 LCD KVM Switch features an integrated 19″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

The XL1908 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

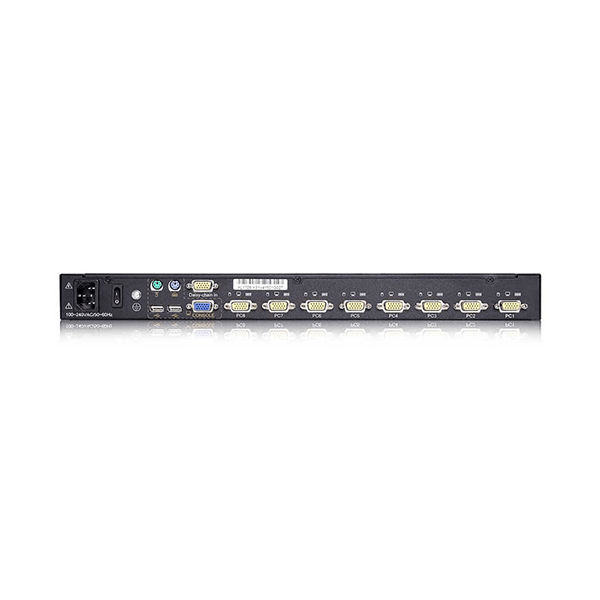

The KVM switch supports both USB and PS/2 connections for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

• One 8 port KVM switch is integrated in 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
• Standard VGA connector-Connect to a server or computer via a standard VGA connector
• Quick release tabs-Insert or remove the device with ease

High Performance Touchpad

• Touchpad with trackball- Eliminates the need for a separate, external mouse

Keyboard

• Multi-language support–English, Russian, German, French, Spanish and Italian, etc.
• Full size 99 keys keyboard with integrated number pad

Management Way

• Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
• Auto scan feature for monitoring user-selected computer
• Broadcast mode–operations simultaneously performed on all selected computers
• Hot pluggable –add or remove computers without having to power down the switch
• Quickly select your computer by naming the server or inputting SN number of the server
• On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

High Resolution

• 19” TFT LCD monitor with highlight, high definition and high resolution
• Resolution is up to 1280 x 1024 @60Hz

Cascade Feature

• Directly access and control up to 8 servers with single XL1908
• By cascading to another 31 switches, as many as 256 servers can be controlled

Security

• Two level password security–only authorized users view and control computers; up to four users and an administrator with a separate profile for each

Wide Compatibility

• Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
• Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
